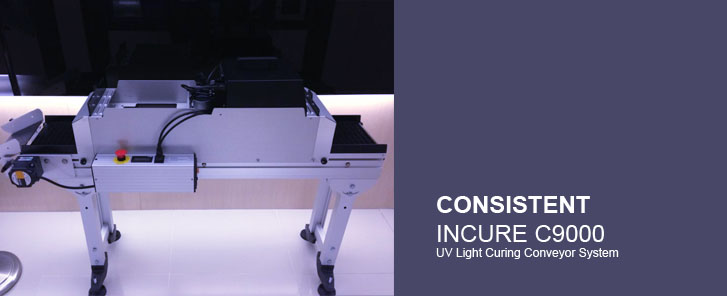

C9000 UV Light Curing Conveyor Systems

Incorporating the latest technology in UV measurement and monitoring system, the INCURE Hurricane Series UV Conveyors are designed for laboratory or high volume production applications. Featuring the use of variable speed motor, with a velocity regulating drive that keeps the belt speed constant for varying loads. Each system can be configured with single or dual high intensity lamps, which can be removed and reconfigured as stand mounted systems for increased versatility. The belt-to-lamp height can be easily adjusted from 1.5 to 5 inches, for improved compatibility with varying part sizes.
One of the key features is the built-in (optional) Intelligent iPatrolTM UMS (UV Monitoring System), which makes use of sensing cells to monitor UV lamps individually, offering Real-Time monitoring, triggering alarms when UV lamp power is out of the preset range.
Download Bulletin for UV Light Curing Conveyor Systems

UV Light Curing Conveyor Systems
Specification
General
Model C9000-115V C9000-230V
Order Number 290010 290009
Input Voltage 100-115VAC +/-10% 200-230VAC +/-10%
Input Current 20 Ampere 10 Ampere
Source Input Frequency 47 Hz to 63 Hz 47 Hz to 63 Hz

Conveyor
Speed Regulation (Load) -2% Max.
(Voltage) +/-1% Max.
(Temp.) +/-1% Max.		 At rate speed
Rate speed, no load
0 °C to 40°C, rated speed
Max. Load (free moving) 200 lbs. Distributed, 80% full speed
Belt Speed 0.5 to 12 ft. /min 0 ft./min @ standby
Digital Speed Readout 0.01 ft./min. Resolution
Belt Type Polypropylene Non-conductive, FDA Approved

Environmental
Operating Temperature +10 °C to +40 °C
Storage Temperature 0 °C to +60 °C
Relative Humidity 30 to 85% operating, 10 to 100% storage Non-condensing
Cooling (motor/drive) Convection
Over-temp shutdown 60°C (internal)

Dimensions
L x W x H (inches) 54” x 14” x 12” Not including chute/lamps
Belt L x W 54'' x 9'' Not including chute/lamps
Weight (lbs.) 51 lbs.
